Smart Antennas / GNSS Receivers

A solution for each precision need

A range of receivers compatible with FARMNAVIGATOR displays
as well as with most agriculture terminals.

Turtle Smart GNSS receiver

  • Entry level, cost-effective option
  • Single L1 frequency GNSS receiver
  • Differential corrections
  • +/- 30 cm pass-to-pass accuracy





Ideal for:
Mapping, Fertilizing, Spraying, Manuring, Weeding, Harrowing.

> Product sheet

> Installation Manual



Turtle Pro GNSS Receiver

  • Cost-effective Terrain Compensation
  • Single L1 frequency GNSS receiver
  • Differential corrections
  • +/- 15 cm pass-to-pass accuracy



Ideal for:
basic precision activities: Mapping, Fertilizing, Spraying, Manuring, Weeding, Harrowing and cereal seeding.


> Product sheet
> Installation Manual



Turtle RTK GNSS receiver

  • Cost-effective RTK solution
  • Multifrequency GNSS receiver
  • Terrain compensation

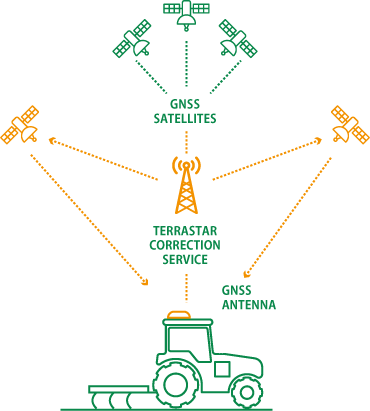

  • Connectivity and NTRIP RTK corrections through G7 Plus
  • +/- 2 cm pass-to-pass accuracy


Ideal for: Auto-steering applications: Seeding, Plowing, Strip-till, Planting, Weeding.

> Product sheet
> Installation manual
> NTRIP configuration manual


All in One RTK receiver

  • The most complete RTK service
  • Multi-frequency GNSS receiver
  • Terrain compensation
  • Integrated NTRIP modem
  • 1 year of Internet service and location service included
  • Accuracy of +/- 2cm
Ideal for : Automatic steering, sowing, plowing, strip-till, planting, weeding.


> Product sheet
> Installation manual
> NTRIP configuration manual



divider


All in One RTK

GNSS RECEIVER FOR SMART FARMING


All-in-one powerful smart antenna:
RTK corrections, 4G connectivity, telematics!

  • Multifrequency GNSS receiver

  • +/- 2 cm pass-to-pass accuracy

  • Terrain compensation

  • Embedded 4G modem

  • NTRIP client for RTK service

  • 1 year of connectivity and telematic services on myfarmnavigator.com

  • Automatic firmware update


Available from spring 2024



Find out more


divider

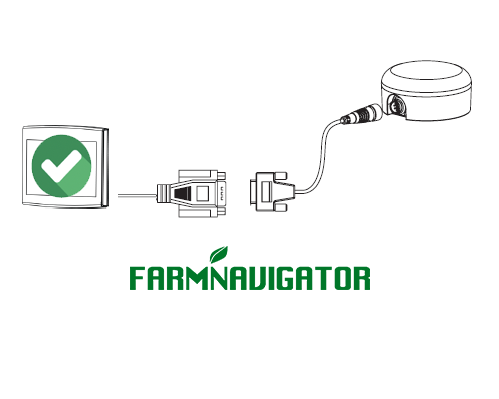

Pre-configured for G7 Farmnavigator

No setting is needed


All the Farmnavigator GNSS antenna are pre-configured for use with Farmnavigator displays.
The baude rate and all the right parameters for the GNSS antenna are pre-set.

Just connect the power cable to the Farmnavigator G7'  serial port and you are ready to use it!


Universal GNSS receivers

Compatible with any display


FARMNAVIGATOR GNSS receivers are compatible with any third party display using serial communication and NMEA0183 messaging.
The default setting is at 115200 bps which is the most commonly Baud rate used by agriculture terminals.

How to Choose the best GPS receiver for your job



What do you need it for? What is the precision required by your job?


Do you need it for basic precision operations such as mapping your fields, spraying, fertilizing, or do you really need auto-steering  for more precise applications? We offer different options for different needs and budgets.



Comparation Table


Model
Turtle Smart
Turtle Pro2
Turtle RTK
All in One RTK
GPS

Glonass

Galileo

Beidou

●
If Glonass is disabled

SBAS

Multi-frequency band

Update rate up to
4 - 10Hz
4 - 10Hz
10Hz
10Hz
RTK

Pass-to-pass accuracy
+/- 30cm
+/- 15cm
+/- 2cm
+/- 2cm
Terrain compensation
Cellular modem

WiFi connection through G7 Plus Farmnavigator
NTRIP client

Through G7 Plus Farmnavigator
1 Year of internet service included
Compatibility with G7 series
G7 Ezy
G7 Plus
G7 Plus
G7 Plus
Suggested use


Spraying
Spreading
Weeding
Manuring
Harrowing
Seeding
Plowing
Strip-till
Planting
