G12 PANORAMA

PARALLEL GUIDANCE

G12 PANORAMA

12" Panoramic Multifunction System


The first 12” panoramic multifuction display in Agriculture

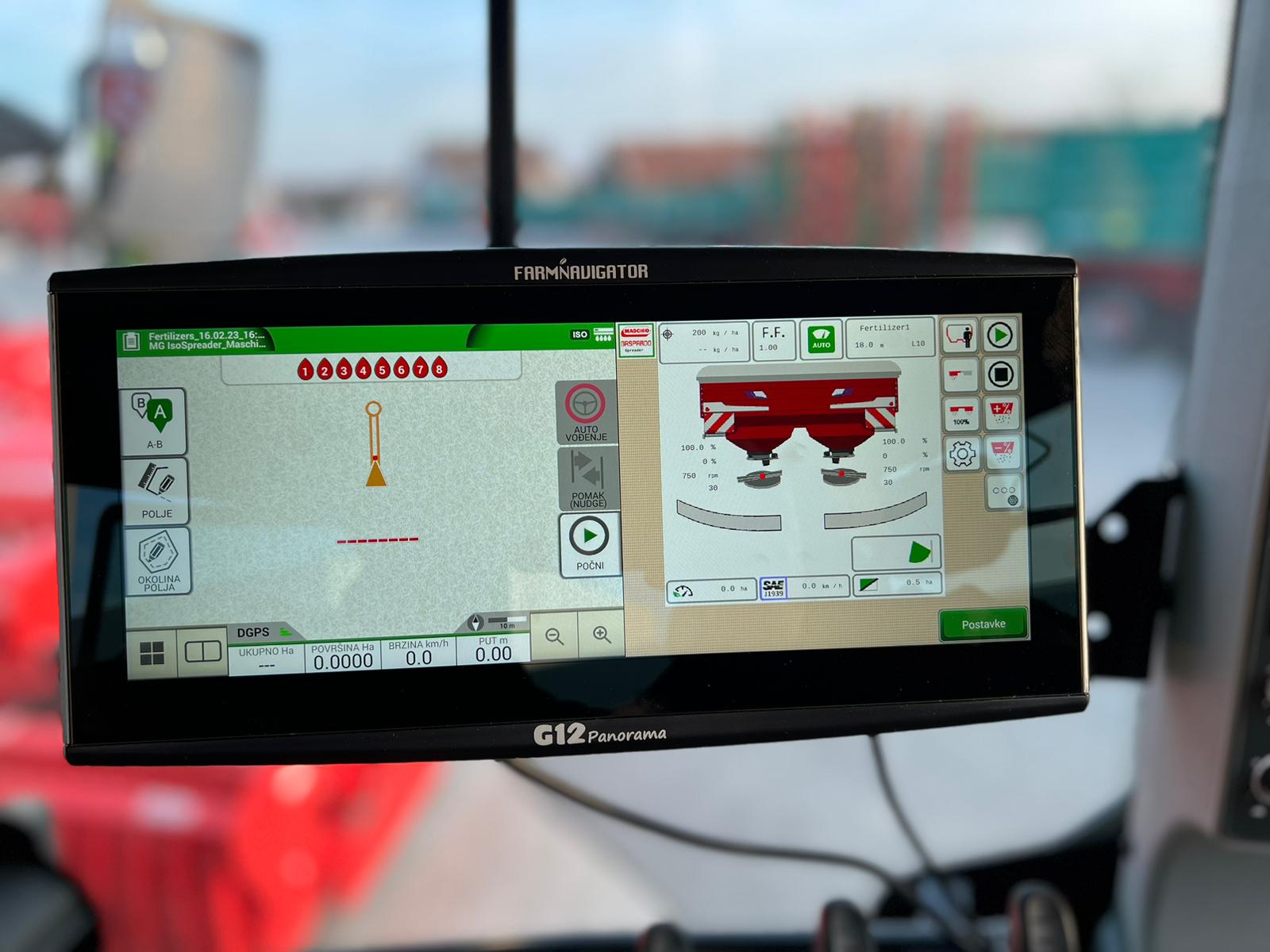

A panoramic view on Parallel Guidance,
ISOBUS implements and cameras.





A Panorama of options


G12 PANORAMA changes the way you see things and work!
Two displays in one: double safety and ease of use,
without compatibility problems.

  • Parallel Guidance

  • Automatic Section Control

  • Automatic Steering

  • ISOBUS Virtual Terminal

  • ISOBUS Task Controller

  • Remote Assistance

  • Connected with MyFarmnavigator cloud



Scegli tu






Horizontal or Vertical

Choose your favourite



Choose horizontal or vertical view, to adapt to any cabin,
then customize the screens with a simple touch.

With G12  you avoid crowding the cabin
while keeping a clear view of the field and surrounding environment.

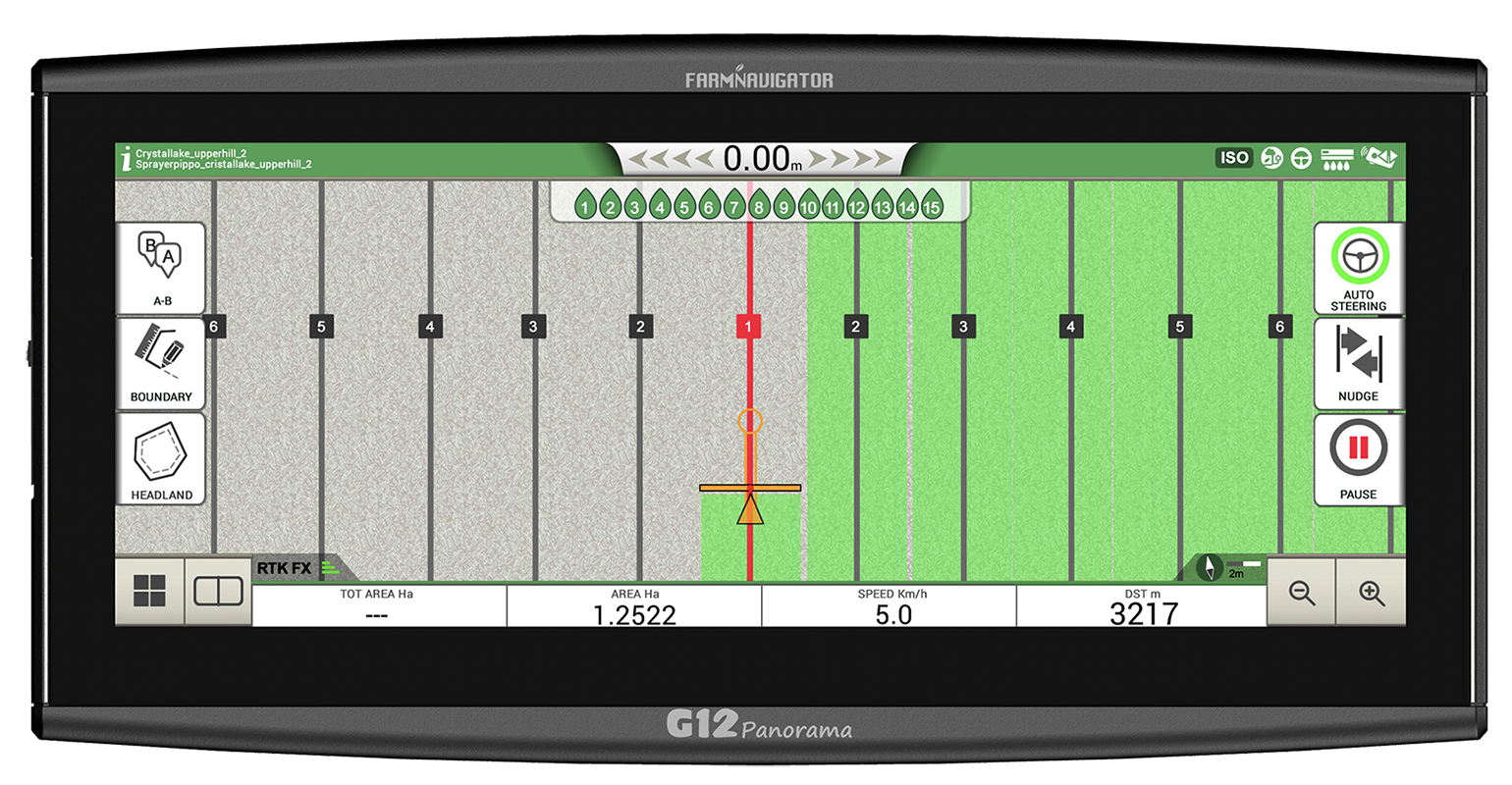

WIDE

Monitor the panoramic field


The Panoramic Field view gives you a complete overview of the field and all related processing data.

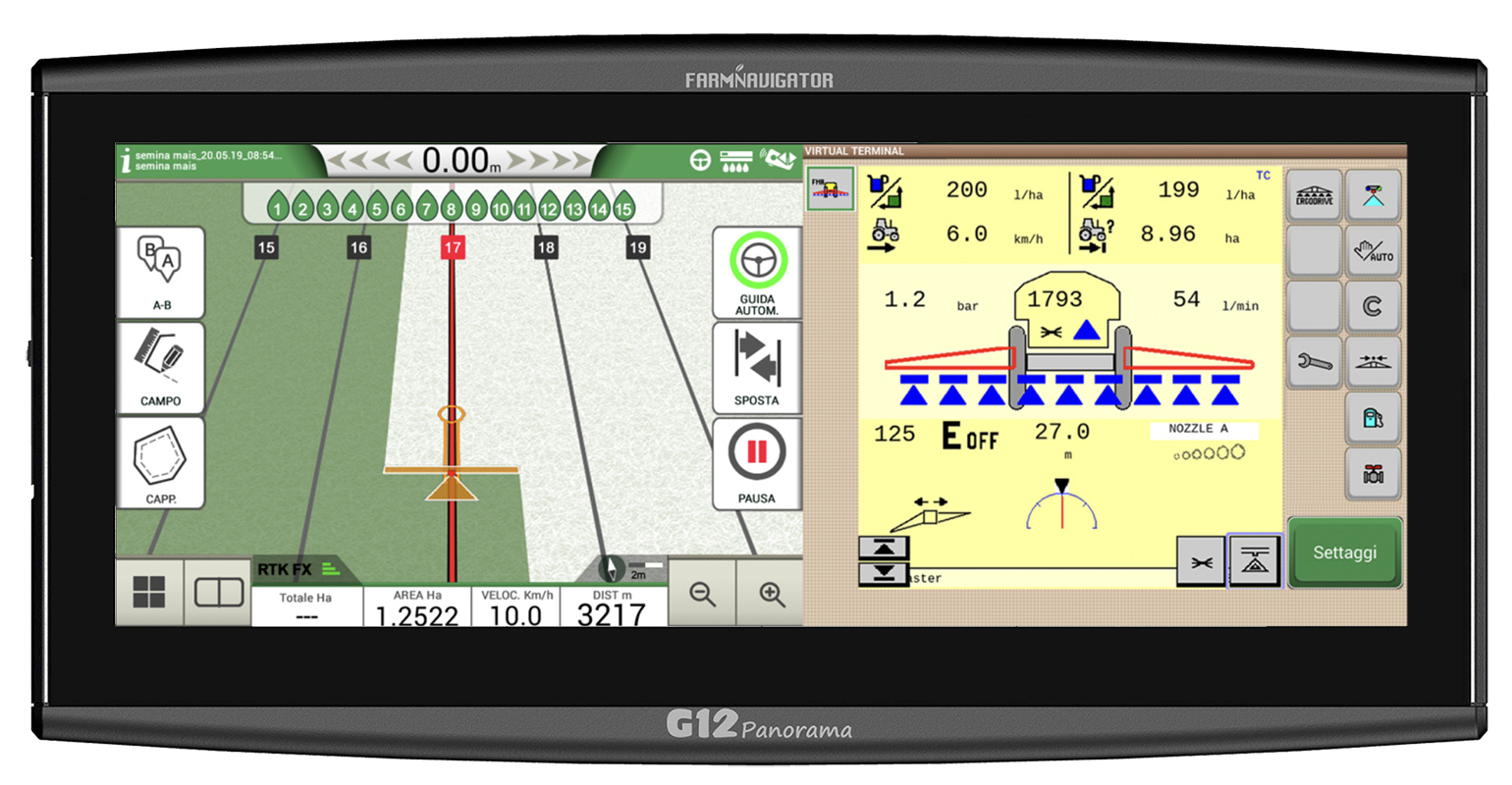

DOUBLE

Keep everything under control, without distractions


The field, the Virtual Terminal of the ISOBUS implements including with Task Controller, and the video cameras positioned on the tools, all in a single multifunctional system.



ISOBUS Licences



G12 Panorama

G12 Panorama

P3MU100WAM


Navigation LIFETIME LICENSE
Virtual Terminal FREE TRIAL
Task Controller FREE TRIAL



G12 Panorama VT

G12 Panorama VT

 P3MU10VWAM


Navigation LIFETIME LICENSE
Virtual Terminal LIFETIME LICENSE
Task Controller FREE TRIAL



G12 Panorama Full


G12 Panorama Full

P3MU10FWAM


Navigation LIFETIME LICENSE
Virtual Terminal LIFETIME LICENSE
Task Controller LIFETIME LICENSE

FREE TRIAL included

Experience the benefits of ISOBUS connectivity!


You can test all the advantages of the Virtual Terminal and Task controller on your FARMNAVIGATOR before buying the Lifetime Software License, thanks to the FREE trial period included.
After the  FREE TRIAL, it is possible to purchase and activate the VT / FULL lifetime license.


You can purchase a lifetime VT / FULL license
from your trusted FARMNAVIGATOR reseller


How to activate the FREE TRIAL?


You may also be interested in:


ISOBUS Retrofit Cable



Make any vehicle ISOBUS ready!


The ISOBUS Retrofit Cable is ISO11783-2 compliant and can be used with a FARMNAVIGATOR ISOBUS Virtual Terminal to allow the connection of any ISOBUS implement in non-ISOBUS vehicles. Compatible with G7 Iso and G12 Panorama.

PRODUCT CODE: K2YYYY0400



Download the Installation Manual



Technical Specifications


G12


Display: 12.3” bonded LCD, 1920x720 px, 1000 nits

Capacitive Multi -Touch Screen

Wi-Fi

Supply Voltage: 10-35 Vdc

Power consumption: 1.5A MAX @ 12V (~18 W)

Interface:

  • 3x serial ports  (2 x DB9 powered 12 V DC, 1 x DB9)
  • 2x Video inputs
  • 2x CANBUS

Connectors:

  • 1x power supply connector (for Power & I/O cable)
  • 1x 14 pin connector (for USB-VideoIN-Ethernet cable)
  • 2x 4 pin connector (for In-cab cable)

Operating temperature:  -10° C + 60° C

Storage temperature: -30 °C + 80 ° C

Waterproof iPX6  suitable for use on tractors without a cab

Dimensions: 300x150x60 mm

Weight: 1900 g


Included accessories





What's in the box?

Power + I/O cable
CBYYYY1005

RAM Double Socket Arm - C
HBS59AX



RAM squared Ball Base - C
HMN166AX

USB-doubleVideoIN-Ethernet
cable
HBD19AX

In-Cab connection cable
CBCYFG0200



G12 protective cover
HPC60AX/A





Support


Register

Register

Register your FARMNAVIGATOR in order to receive support


User Manual

G12 Panorama Accessories

RAM Double Socket Arm - C

HBS59AX

RAM double socket arm



RAM Squared Ball Base - C

HMN166AX

RAM squared ball base



USB-2xVideoIN-Ethernet cable

CBCYFS1200
Desktop bracket



G12 Power & I/O cable

CBYYYY1005

G7 Farmnavigator Remote Control



RAM Mount bar - C

HMN171AX

AM Mount bar





In-Cab cable

CBCYFG0200
Spider adapter – Cigarette lighter
